SMS Controller Alarm

GSM 3G 4G SMS Remote Controller Alarm(2DIN+2DO+USB)

Item No.: S130
The GSM 3G 4G SMS Remote Controller Alarm S130 is an industrial class, high reliability, high stability Remote Control and Alarm Unit.
Introduction Features Specifications Download Applications

The GSM 3G 4G Remote Controller Alarm is an industrial class, high reliability, high stability Remote Control and Alarm Unit.  It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module, provides 2 relay outputs, 2 digital inputs and USB Serial Port.
 Download Brochure


The GSM 3G 4G Remote Controller Alarm allows you to monitor and control an alarm by SMS (Short Message Service) . When any input triggered or recovery, will switch on the relay automatically, and send SMS immediately. This is very useful if you need protect your assets with low cost solution. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

Typically applications:
1.   Security Alarm System applications;
2.   Supervision and monitoring alarm systems;
3.   Automatic monitoring system;
4.   Vending Machines security protection;
5.   Pumping Stations, Tanks, Oil or Water levels;
6.   Buildings and Real Estate;
7.   Weather Stations;
8.   River Monitoring and Flood Control;
9.   Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.

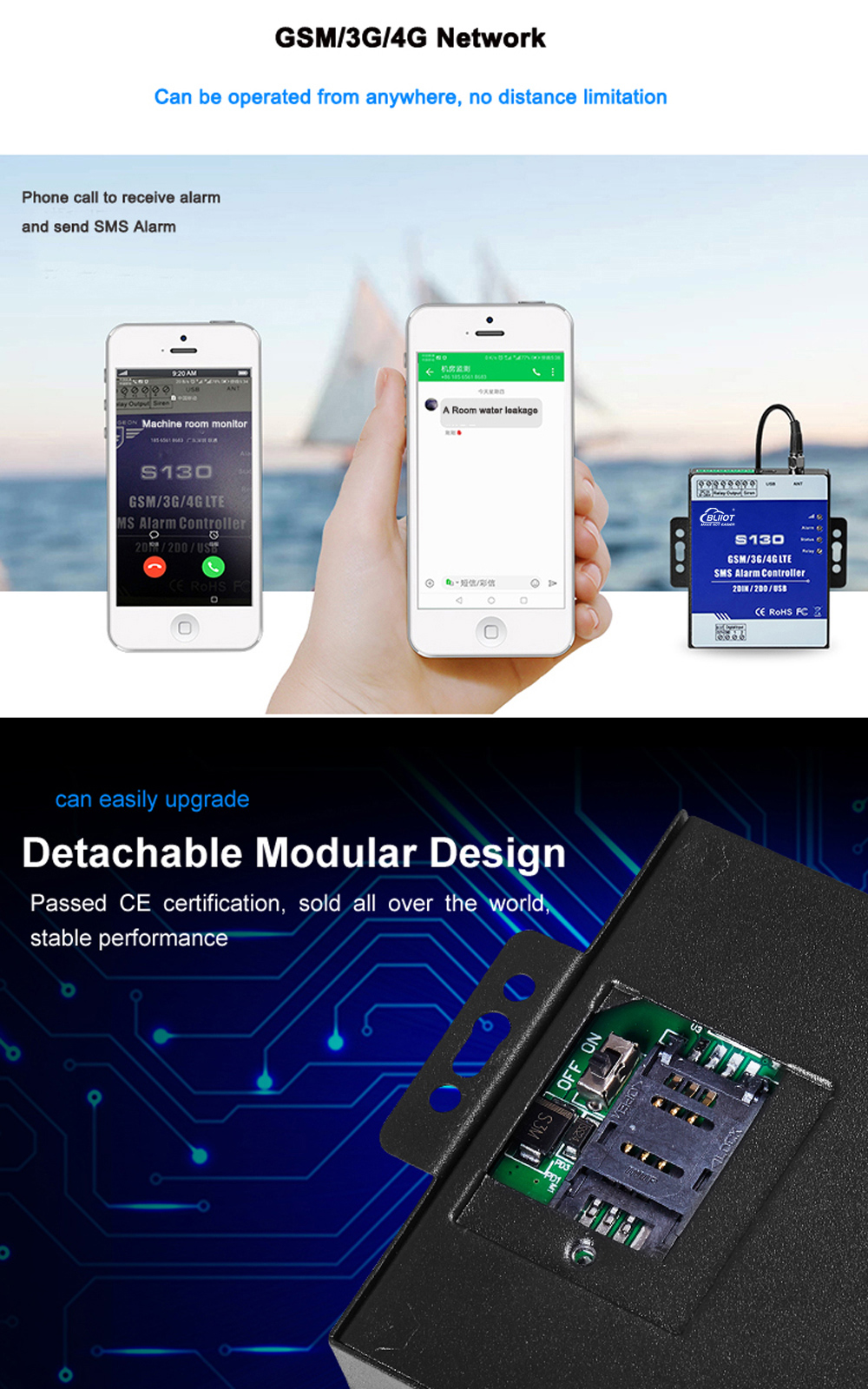

1.    Can be operated from anywhere, no distance limitation;
2.    Quad band 850/900/1800/1900Mhz GSM Module inside.
3.    3G/4G Modules are optional;
4.    Modular design, can easily upgrade the cellular module if network upgrade;
5.    Embedded 32 bit ARM9 MCU, reliable performance with in-built watchdog;
6.    Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
7.    2 digital input, compatibles dry contact and wet contact , support EOL connection;
8.    2 relay output(240VAC@3A), 1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text, the other one can be switch on 4minutes if any inputs triggered;
9.    Supports input status recovery, external power failure alert by SMS texts;
10.  Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;
11.  Up to 3 user's phone number to receive alarm and daily report SMS and 5 user’s phone number to receive alarm Call;
12.  Provide free charge SMS APP to operations;
13.  Inbuilt large capacity rechargeable backup battery, external power monitoring alarm;
14.  Industrial class design suitable for long time work applications;
15.  Support configure parameters, load profiles and upgrade the firmware via USB port;
16.  Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
17.  Small size, L70 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

Item

Reference Scope

DC Power supply

Standard adapter: DC 12V/1.5A  Range 9-36VDC

Power consumption

Standby:12V/70mA;  Working Max.: 12V/300mA

Cellular Frequency

850/900/1800/1900Mhz or 3G or 4G or NB-IoT

TCP/IP stack

/

SIM interface

Supporting 3V SIM Card

Cellular Antenna

SMA Antenna interface, 50 Ohm, Gain: 3dB

Serial Interfaces

1 USB Port;

Protocols

SMS

Alarm Numbers

3 SMS Alert phone numbers,5 auto-dial phone numbers

Digital Input

2, Dry Contact, Wet Contact(0~ 0~0.5VDC=Close, +3~+30VDC=Open)

Relay Output

2, Dry Contact, 240VAC@3A

Power Outputs

1 Channel 9-36VDC for external device;

Backup Battery

3.7V 1200mAH

Temperature range

-10-+70 °C

Humidity range

Relative humidity 95% (condensation free)

Exterior dimension

70mm*88mm*30mm

Net Weight

320 g

User Manual
PC Configurator

SMS APP QR Code:

(Scan the QR code to download)

  (Apple Store search: IIoT Cloud Download)

Typically applications:

1.   BTS Monitoring;
2.   Security Alarm System applications;
3.   Supervision and monitoring alarm systems;
4.   Automatic monitoring system;
5.   Vending Machines security protection;
6.   Pumping Stations, Tanks, Oil or Water levels;
7.   Buildings and Real Estate;
8.   Weather Stations;
9.   River Monitoring and Flood Control;
10. Oil and gas pipelines;
11. Corrosion protection
12. Temperatures, water leakage applications;
13. Wellheads, boat, vehicle;
14. Energy saving, street lights control system;
15. Valve controls;
16. Transformer stations;
17. Unmanned machine rooms;
18. Control room application;
19. Automation System, M2M;
20. Access Control System;
21. PLC Gateway, PLC Remote Monitoring.
Description

The GSM 3G 4G Remote Controller Alarm is an industrial class, high reliability, high stability Remote Control and Alarm Unit.  It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module, provides 2 relay outputs, 2 digital inputs and USB Serial Port.
 Download Brochure


The GSM 3G 4G Remote Controller Alarm allows you to monitor and control an alarm by SMS (Short Message Service) . When any input triggered or recovery, will switch on the relay automatically, and send SMS immediately. This is very useful if you need protect your assets with low cost solution. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

Typically applications:
1.   Security Alarm System applications;
2.   Supervision and monitoring alarm systems;
3.   Automatic monitoring system;
4.   Vending Machines security protection;
5.   Pumping Stations, Tanks, Oil or Water levels;
6.   Buildings and Real Estate;
7.   Weather Stations;
8.   River Monitoring and Flood Control;
9.   Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.

introduction
The GSM 3G 4G SMS Remote Controller Alarm S130 is an industrial class, high reliability, high stability Remote Control and Alarm Unit.  It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module, provides 2 relay outputs, 2 digital inputs and USB Serial Port.
Features
1.    Can be operated from anywhere, no distance limitation;
2.    Quad band 850/900/1800/1900Mhz GSM Module inside.
3.    3G/4G Modules are optional;
4.    Modular design, can easily upgrade the cellular module if network upgrade;
5.    Embedded 32 bit ARM9 MCU, reliable performance with in-built watchdog;
6.    Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
7.    2 digital input, compatibles dry contact and wet contact , support EOL connection;
8.    2 relay output(240VAC@3A), 1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text, the other one can be switch on 4minutes if any inputs triggered;
9.    Supports input status recovery, external power failure alert by SMS texts;
10.  Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;
11.  Up to 3 user's phone number to receive alarm and daily report SMS and 5 user’s phone number to receive alarm Call;
12.  Provide free charge SMS APP to operations;
13.  Inbuilt large capacity rechargeable backup battery, external power monitoring alarm;
14.  Industrial class design suitable for long time work applications;
15.  Support configure parameters, load profiles and upgrade the firmware via USB port;
16.  Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
17.  Small size, L70 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
Specifications

Item

Reference Scope

DC Power supply

Standard adapter: DC 12V/1.5A  Range 9-36VDC

Power consumption

Standby:12V/70mA;  Working Max.: 12V/300mA

Cellular Frequency

850/900/1800/1900Mhz or 3G or 4G or NB-IoT

TCP/IP stack

/

SIM interface

Supporting 3V SIM Card

Cellular Antenna

SMA Antenna interface, 50 Ohm, Gain: 3dB

Serial Interfaces

1 USB Port;

Protocols

SMS

Alarm Numbers

3 SMS Alert phone numbers,5 auto-dial phone numbers

Digital Input

2, Dry Contact, Wet Contact(0~ 0~0.5VDC=Close, +3~+30VDC=Open)

Relay Output

2, Dry Contact, 240VAC@3A

Power Outputs

1 Channel 9-36VDC for external device;

Backup Battery

3.7V 1200mAH

Temperature range

-10-+70 °C

Humidity range

Relative humidity 95% (condensation free)

Exterior dimension

70mm*88mm*30mm

Net Weight

320 g

Download
User Manual
PC Configurator

SMS APP QR Code:

(Scan the QR code to download)

  (Apple Store search: IIoT Cloud Download)

Applications
Typically applications:

1.   BTS Monitoring;
2.   Security Alarm System applications;
3.   Supervision and monitoring alarm systems;
4.   Automatic monitoring system;
5.   Vending Machines security protection;
6.   Pumping Stations, Tanks, Oil or Water levels;
7.   Buildings and Real Estate;
8.   Weather Stations;
9.   River Monitoring and Flood Control;
10. Oil and gas pipelines;
11. Corrosion protection
12. Temperatures, water leakage applications;
13. Wellheads, boat, vehicle;
14. Energy saving, street lights control system;
15. Valve controls;
16. Transformer stations;
17. Unmanned machine rooms;
18. Control room application;
19. Automation System, M2M;
20. Access Control System;
21. PLC Gateway, PLC Remote Monitoring.
