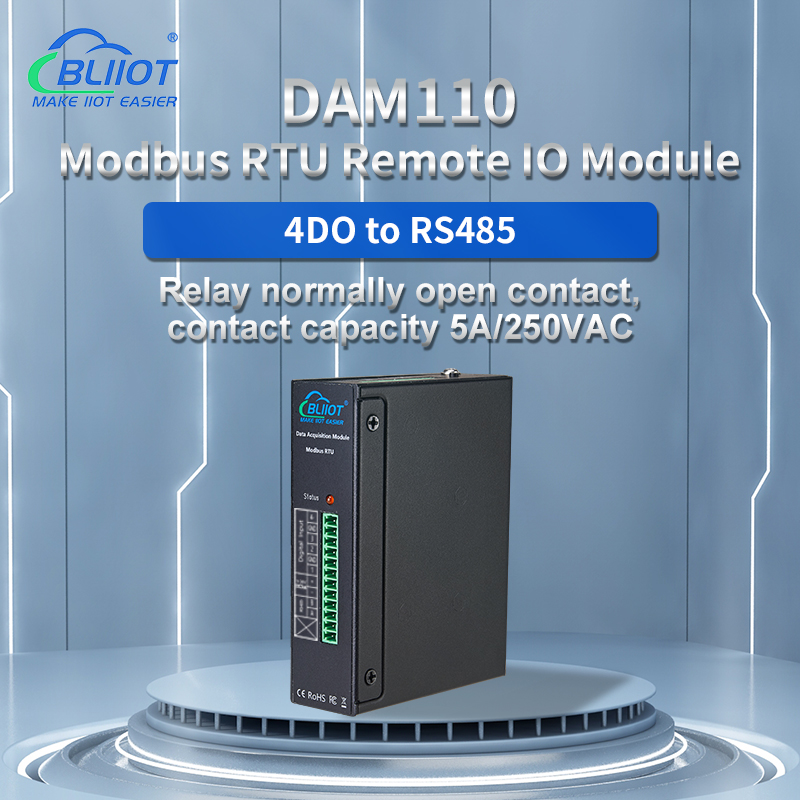

4DO Remote DO/Relay Output Module (4 Relay Outputs)

Item No.: DAM110
The DAM110 remote data acquisition module is designed for harsh industrial applications and is used in a wide range of industrial automation measurement and control systems,for controlling 4 digital relay outputs.
Introduction Features Specifications Download Applications

Remote IO Module DAM110 is a remote data acquisition module, it is designed for harsh industrial applications and is used in a wide range of industrial automation measurement and control systems,for controlling 4 digital relay outputs.

Remote IO Module DAM110 supports Modbus RTU Protocol over RS485 serial port.  The DAM series modules can be used in a variety of industrial automation measurement and control systems as a front-end for data acquisition control, directly connected to various actuators or transmitters, sensors, and detectors.The digital output can control intermediate relay or indicator output.



1.  4 digital relay outputs(supports Pulse output);
2.  Modbus RTU Protocol over RS485;
3.  Wide range power supply 9~36VDC with reverse polarity connection protection;
4.  ESD Protection circuit for RS485 serial port;
5.  Built-in watchdog ensure it reliability;
6.  Lightning protection ensure it stability;
7.  LEDs for status indication makes it easy to program in filed;
8.  Small size, L70*W88*H30mm, support for wall mounting and DIN35mm industrial rail mounting.
