Fanless Embedded Industrial PC
Item No.: BL351
The X86 Fanless Embedded Industrial Computer BL351 series is designed for the harsh industrial environment. It adopts industrial-grade Intel CPU inside, provides RS485, RS232, HDMI, VGA, USB, RJ45, DI, DO and Mini-PCIe for 4G, 5G, WiFi, etc. The Fanless
Introduction
Features
Specifications
Download
Applications

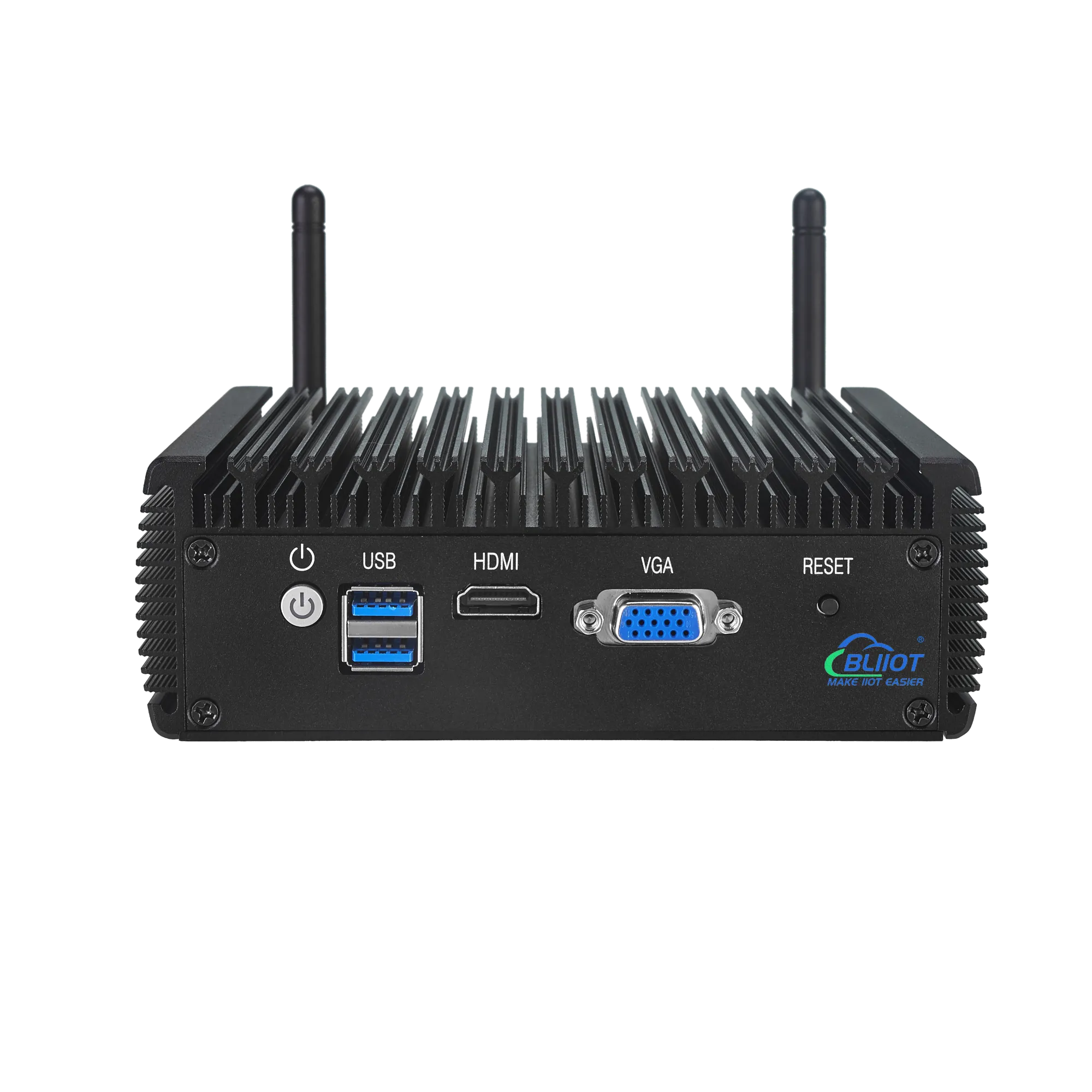

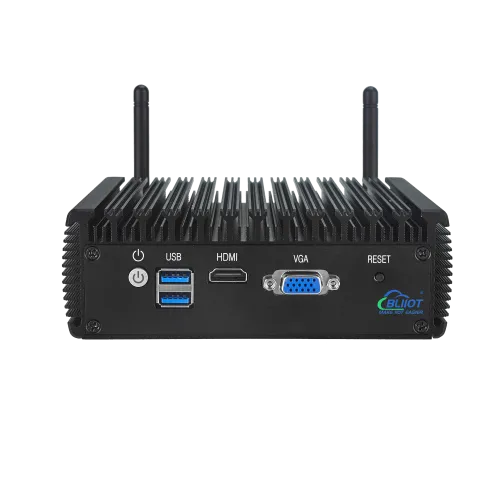

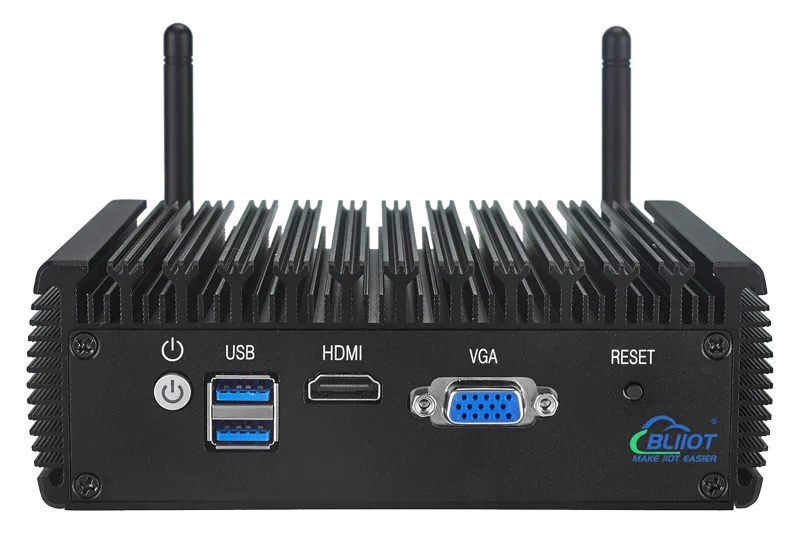

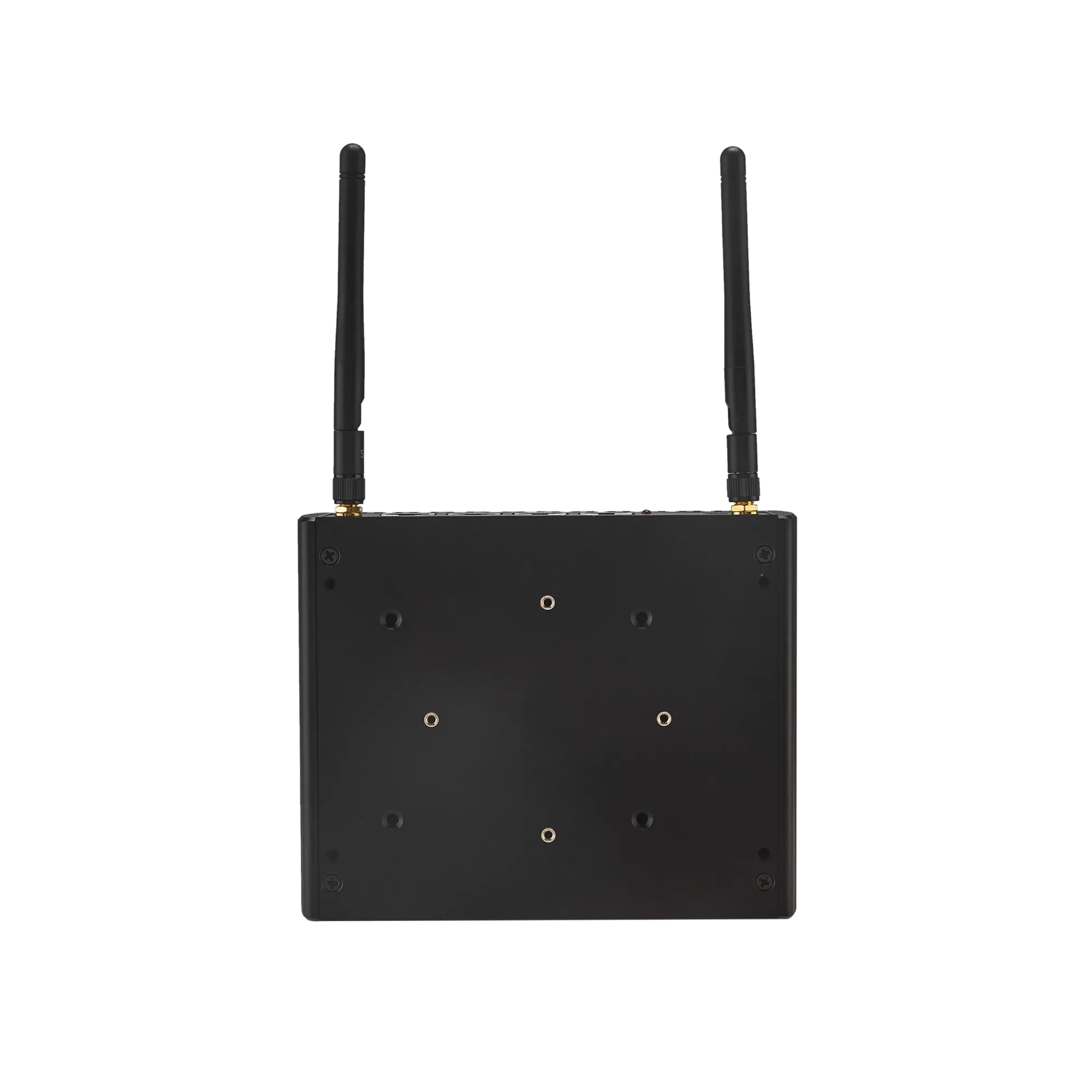

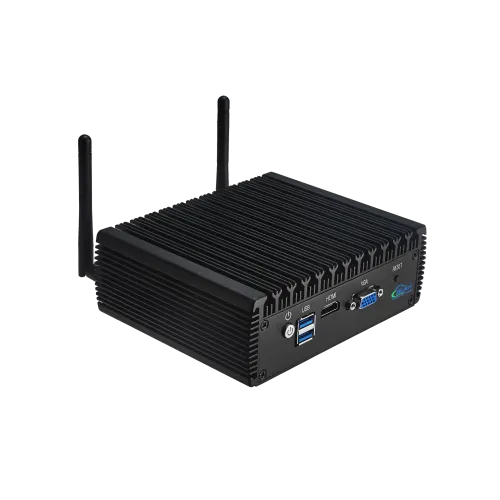

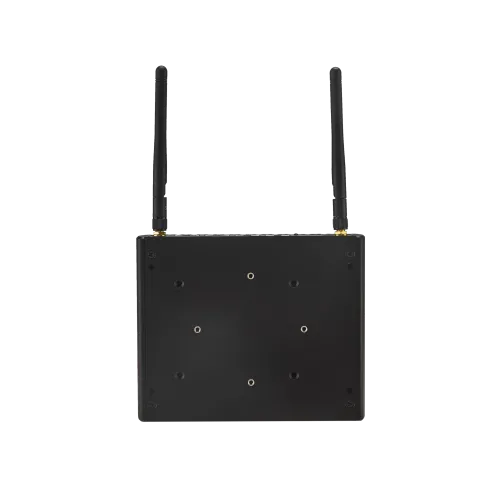

Fanless Industrial PC BL351
| Model | BL351-36-N5105 |
| CPU | N5105 |
| Memory | DDR4(2400/2666/2933MHz), 16GB |
| Memory Options | DDR4 (2400/2666/2933MHz), 4GB/8GB/16GB |
| Graphics | VGA+HDMI2.0 |
| Ethernet | 4xIntel i225-B3, 2.5G network ports |
| Audio | x |
| Interface | 2xUSB3.0 |
| I/O | 1x9-wire RS232, 2xUSB2.0, 1xSIM |
| Others | 0-255S, system reset |
| Expansion | 1xHalf MINI-PCIe(Support PCIe and USB 3G/4G communication module) |
| Storage | M.2 1T (NVME signal, mini-pcie3.0, 2X), SATA3.0, 2.5 inch |
| Storage Options | M.2 NVME, 32G/64G/128G/256G/512G/1T |
| Software | Microsoft Windows Windows 10 Enterprise, Linux Support by project |
| Power | DC 12V input, 5.5*2.5 DC connector |
| Power consumption | 10w |
| Mechanical | 120mmx120mm |
| Environment | Storage temperature: -20-70℃ Working temperature: -20-60℃ |
